Description

Dell Pro SD25 USB-C Smart Docking Station 210-BRFM

Technical Specification

Product: Dell Pro SD25 USB-C Smart Docking Station

Product Type: Smart Dock

Device Supported: Notebook

Connectivity Technology: Wired

Number of Displays Supported: 4

Video Resolution

DP1.4 with Display Stream Compression

4x WQHD (3440 x 1440) @ 60Hz
3x WQHD (3440 x 1440) @ 60Hz
2x 5K (5120 x 2160) @ 60Hz
1x 6K (6144 x 3456) @ 60Hz
DP1.4 without Display Stream Compression

Up to

4x HD (1280×720) @ 60Hz
3x FHD (1920×1080) @ 60Hz
2x QHD (2560×1440) @ 60Hz
1x 4K (3840 x 2160) @ 60Hz
Ethernet Technology: RJ45 Ethernet port, 2.5GbE

USB Ports (Power)

4x USB-A 3.2 Gen 2 (4.5W each)
1x USB-C 3.2 Gen 2 (15W)
1x USB-C Multi-function DisplayPort (7.5W)
All deliver power with or without PC
USB Power Delivery: 130W (Dell systems), 96W (non-Dell systems)

Maximum Power Supply Wattage: 180W

Dimensions (H x W x D): 205 x 90 x 35.25mm

Weight: 562 g

Management Features

Host PC Management

MAC address pass-through
PXE Boot
Dock Power Button Sync
Wake-On-LAN
WLAN to LAN switch
Kernel Direct Memory Access (DMA) protection
Dock Management Features

Remote firmware updates without a PC
Host PC based firmware updates
Firmware update on disconnect
Port Disablement independent of PC
Warranty: 3-year Limited Hardware with Advanced Exchange

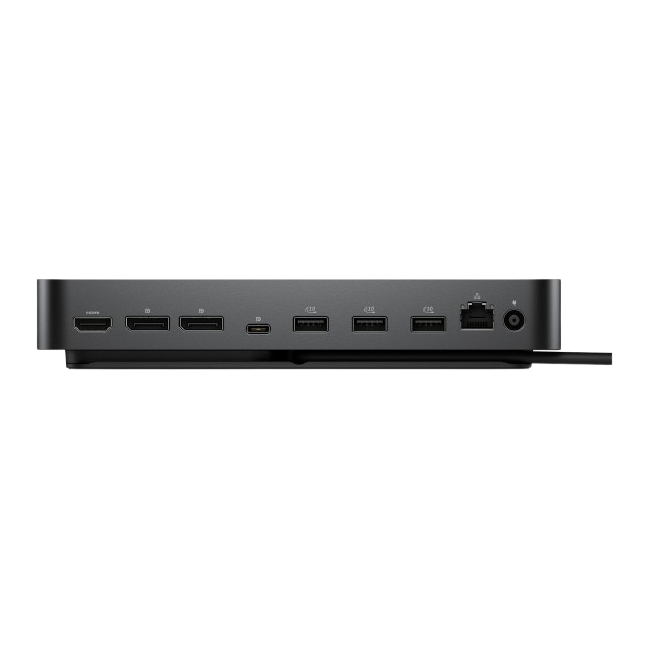

Ports and slots

USB-A 3.2 Gen 2 with PowerShare
USB-C 3.2 Gen 2
HDMI 2.1
DisplayPort 1.4
DisplayPort 1.4
USB-C 3.2 Gen 2 Multifunction DisplayPort 1.4
USB-A 3.2 Gen 2 with PowerShare
USB-A 3.2 Gen 2 with PowerShare
USB-A 3.2 Gen 2 with PowerShare
2.5 Gigabit Ethernet (RJ45)
Power In
