Description

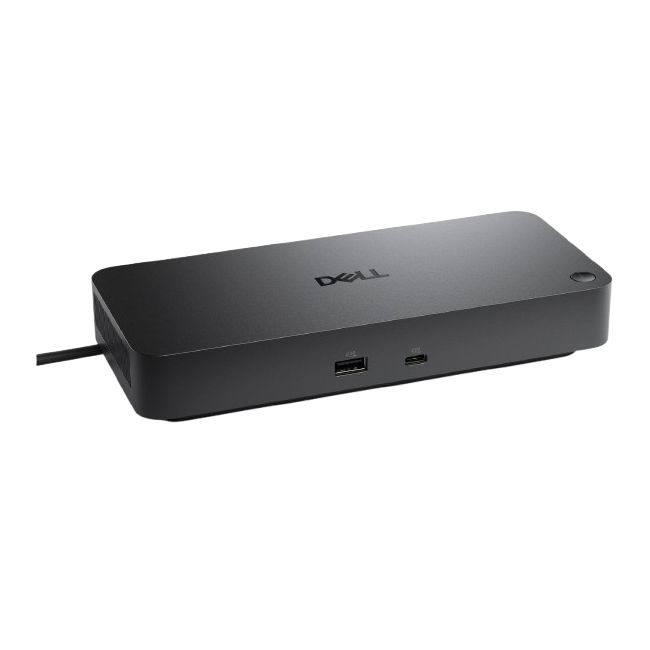

Dell WD25 Pro Docking Station 210-BRFQ

Technical Specification

Product: Dell Pro Dock – WD25

Connectivity Technology: Wired

Number of Displays Supported: 4

Management Features

Host PC Management

MAC address pass-through
PXE Boot
Dock Power Button Sync
Wake-On-LAN
WLAN to LAN switch
Kernel Direct Memory Access (DMA) protection
Dock Management Features

Host PC based firmware update
Firmware update on disconnect
Port Disablement
Device Supported: Notebook

Video Resolution

DP1.4 with Display Stream Compression up to
4x WQHD (3440 x 1440) @ 60Hz
3x WQHD (3440 x 1440) @ 60Hz
2x 5K (5120 x 2160) @ 60Hz
1x 6K (6144 x 3456) @ 60Hz
DP1.4 without Display Stream Compression up to
4x HD (1280×720) @ 60Hz
3x FHD (1920×1080) @ 60Hz
2x QHD (2560×1440) @ 60Hz
1x 4K (3840 x 2160) @ 60Hz
Ethernet Technology: RJ45 Ethernet port, 2.5GbE

USB Power Delivery

100W (Dell systems)
96W (non-Dell systems)
Maximum Power Supply Wattage: 130W

Kensington Security Slot: Yes

Operating System Supported

Windows 10
Windows 11
Ubuntu
Red Hat Enterprise Linux
ChromeOS
macOS
Weight: 550 g

Warranty: 3-year Advanced Exchange

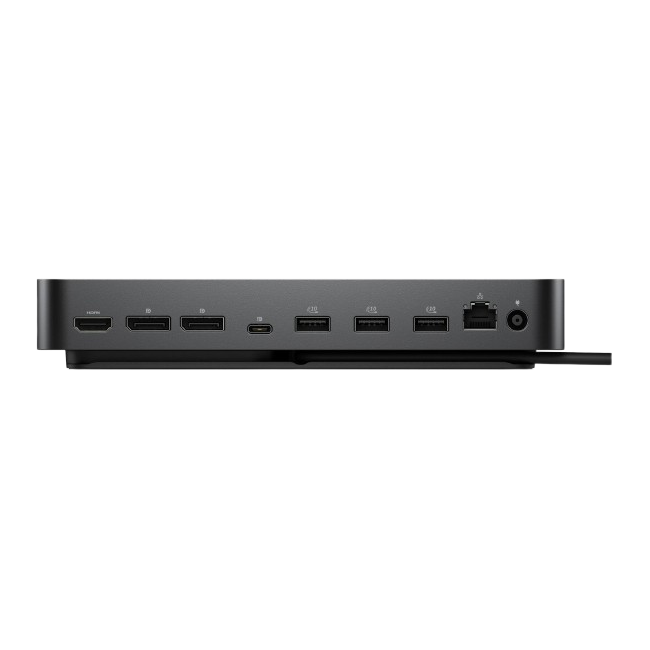

Ports and slots

USB-A 3.2 Gen 2 with PowerShare
USB-C 3.2 Gen 2
HDMI 2.1
DisplayPort 1.4
DisplayPort 1.4
USB-C 3.2 Gen 2 Multifunction DisplayPort 1.4
USB-A 3.2 Gen 2 with PowerShare
USB-A 3.2 Gen 2 with PowerShare
USB-A 3.2 Gen 2 with PowerShare
2.5 Gigabit Ethernet (RJ45)
Power In
