Description

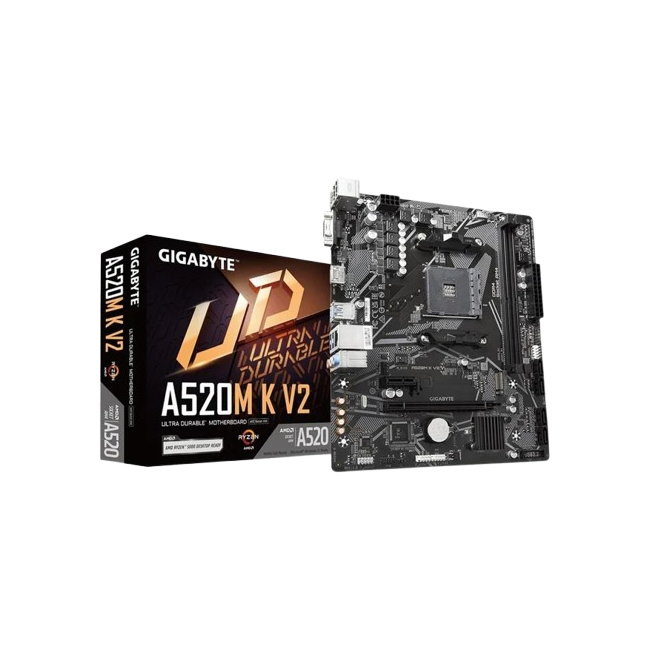

Gigabyte A520M K V2 AMD Socket AM4 mATX Motherboard GA-A520M-K V2

Technical Specifications:

Processor manufacturer: AMD

Processor socket: Socket AM4

Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 5000 Series

Supported memory types: DDR4-SDRAM

Maximum internal memory: 64 GB

Memory slots type: DIMM

Supported storage drive interfaces: M.2, SATA III

Supported storage drive types: HDD & SSD

RAID levels: 0, 1, 10

Maximum resolution: 4096 x 2160 pixels

USB connector type: USB Type-A

Storage Interface

1x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support)
4x SATA 6Gb/s connectors
Internal I/O Connectors

1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x CPU fan header
1x system fan header
1x M.2 Socket 3 connector
4x SATA 6Gb/s connectors
1x front panel header
1x front panel audio header
1x USB 3.2 Gen 1 header
2x USB 2.0/1.1 headers
1x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
1x speaker header
1x Clear CMOS jumper
1x chassis intrusion header
Back Panel Connectors

1x PS/2 keyboard/mouse port
1x D-Sub port
1x HDMI port
4x USB 3.2 Gen 1 ports
2x USB 2.0/1.1 ports
1x RJ-45 port
3x audio jacks
