Description

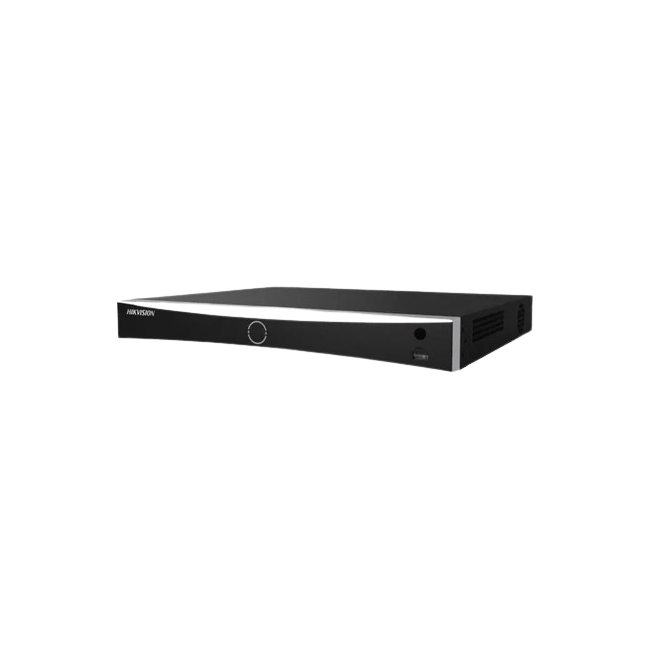

Hikvision 7600 Pro Series 16-ch AcuSense 4K 1U NVR DS-7616NXI-K2

The Hikvision DS-7616NXI-K2 is a professional 16-channel AcuSense Network Video Recorder (NVR) designed for intelligent video surveillance in commercial and residential environments. Supporting up to 16 IP cameras, advanced AI-powered AcuSense technology and 4K video output, it delivers reliable recording, efficient video management and enhanced perimeter protection.

Key Features
Supports up to 16 IP network cameras.
AcuSense deep learning technology reduces false alarms through human and vehicle classification.
Supports facial picture comparison and intelligent video analytics.
Up to 160 Mbps incoming bandwidth.
4K HDMI output for ultra-high-definition monitoring.
H.265+ compression reduces bandwidth and storage requirements.
Dual SATA interfaces supporting up to 10TB per drive.
Remote viewing and management via Hik-Connect.
AI-Powered Video Surveillance
Powered by Hikvision AcuSense technology, the DS-7616NXI-K2 accurately distinguishes people and vehicles from other moving objects, significantly reducing false alarms while improving event detection accuracy.

High-Resolution Recording
Supporting up to 16 network cameras with recording resolutions up to 12MP and HDMI output at up to 4K, the recorder delivers detailed live monitoring and playback for professional surveillance installations.

Efficient Storage Management
Advanced H.265+ video compression minimises storage requirements without compromising image quality. Dual SATA bays support large-capacity surveillance hard drives for extended recording retention.

Technical Specifications

Brand
Hikvision
Model
DS-7616NXI-K2
Product Type
16-Channel AcuSense Network Video Recorder (NVR)
IP Camera Inputs
Up to 16 Channels
Incoming Bandwidth
160 Mbps
Outgoing Bandwidth
160 Mbps
Video Compression
H.265+, H.265, H.264+, H.264
Maximum Recording Resolution
Up to 12MP
AI Functions
AcuSense Human and Vehicle Classification, Facial Picture Comparison and Intelligent Motion Detection
HDMI Output
1 × HDMI, Up to 3840 × 2160 (4K)
VGA Output
1 × VGA, Up to 1920 × 1080
Storage Bays
2 × SATA
Maximum Storage Capacity
Up to 10TB per HDD
USB Ports
2 × USB 2.0
Network Interface
1 × Gigabit Ethernet RJ45
Audio
1 × Audio In, 1 × Audio Out
Remote Access
Hik-Connect, Web Browser and iVMS-4200
Power Supply
12V DC
Power Cable Included
1 × Schuko Euro 2-pin Power Cable
Applications
Commercial Security, Retail, Warehouses, Offices, Residential Surveillance and Enterprise CCTV Systems

The Hikvision DS-7616NXI-K2 delivers intelligent AcuSense analytics, efficient H.265+ recording, 4K monitoring and reliable 16-channel network video recording, making it an ideal solution for professional surveillance installations.
